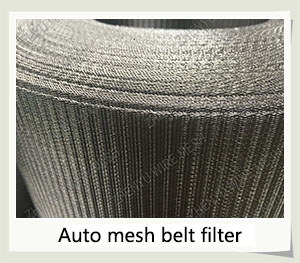

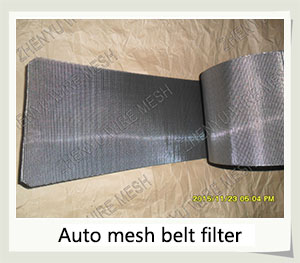

Auto mesh belt filter

Auto mesh belt filter  (also known as Auto Extruder Filter Belt, Plastic Extruder Filter Belt, Reversible Dutch Mesh,Contrast Mat Net, Reverse Dutch Weave Wire Mesh Belt For Plastic Extrusion Changers ) using the dense warp, thin weft knitting method, used in plastics extruder solution filtration, chemical mechanical filtration, such as solid-liquid separation filter, so that in cleaning backwash filter oil, residues process has good mechanical stability and filtering accuracy.

Feature of auto mesh belt filter:
With smooth surface, high hardness, network continuously, not deformation, high temperature resistance, corrosion resistance, the advantages of flexible network, has excellent filtering performance.

Application of auto extruder filter belts:
Suitable for Austrian Lenzing equipment and Germany,Japan and other countries of the wire drawing machine,stretch film machine,coating machine filters,
Used in plastic woven bag,plastic film industries,etc,
Widely used in aerospace,petroleum,chemical,chemical fiber,machinery, plastic products,research and plastic melt filter,molding machine belt type filter conveyor industries.

Mesh/inch

Wire Dia.
(mm)

Thicknessmm

Width
(mm)

Length/Roll
(m)

45x15

0.45x0.6

 1.75

97---400

10/20/30

72x15

0.45x0.55

1.7

97---400

10/20/30

120x16

0.35x0.45

 1.36

97---400

10/20/30

132x17

0.3x0.45

1.3

97---400

10/20/30

152x17

0.32x0.45

1.3

97---400

10/20/30

152x24

0.3x0.40

1.2

97---400

10/20/30

160x18

0.28x0.45

 1.27

97---400

10/20/30

180x20

0.27x0.45

1.2

97---400

10/20/30

200x40

0.15x0.27

0.7

97---400

10/20/30

260x40

0.15 x0.27

 0.65

97---400

10/20/30

300x40

0.15 x0.27

 0.65

97---400

10/20/30

360x40

0.13 x0.27

0.6

97---400

10/20/30

Standard Width:
95mm / 97mm/ 127mm /134mm /150mm/ 155mm /160mm/165mm
